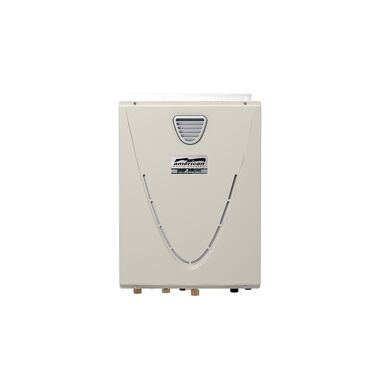

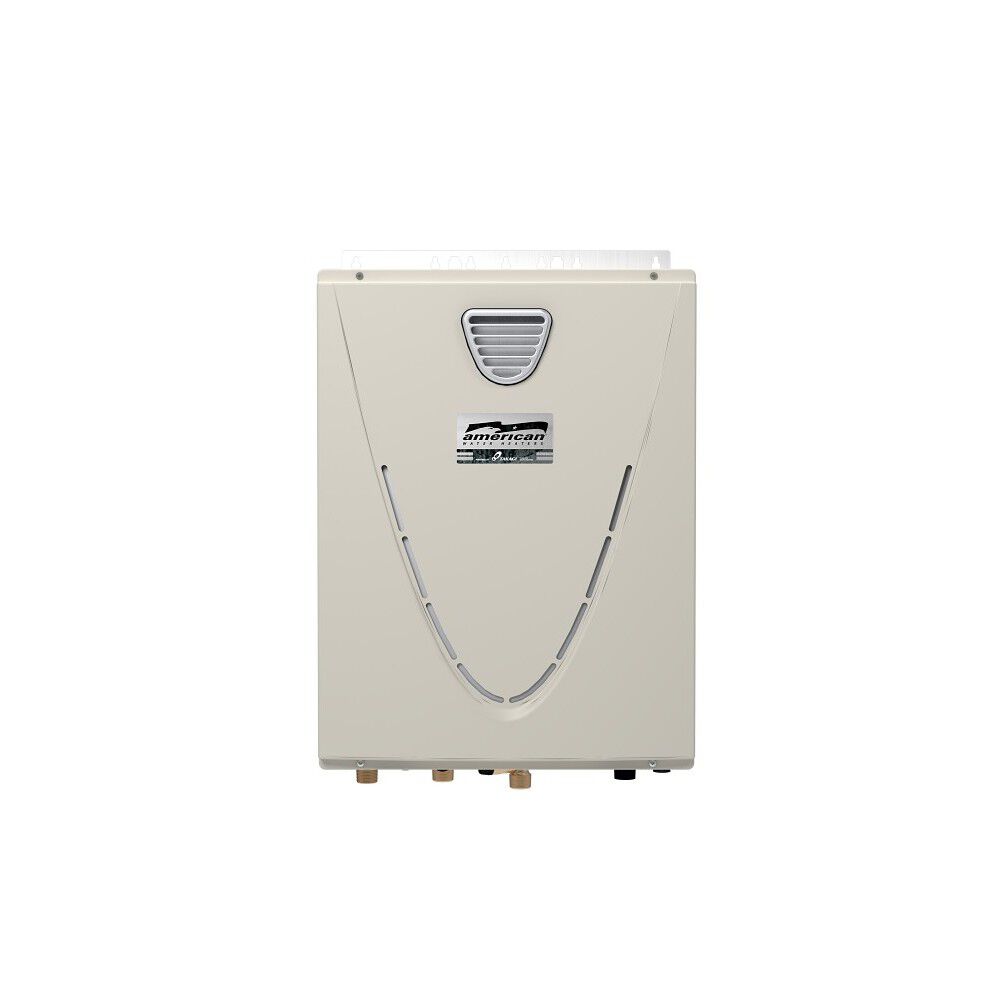

GT-540P-NEH - ProLine® XE Condensing Ultra-Low NOx Outdoor 199,000 BTU Natural Gas Tankless Water Heater

Model GT-540P-NEH 100
Installation Type
Fuel Source
Maximum BTU's

  • ENERGY STAR® certified with up to 0.95 UEF rating
  • Easy-link up to four like units for increased flow capacity for larger applications
  • Provides flexible venting with PVC, CPVC, or ABS Pipe for Intake and Exhaust (solid core only)
  • GT-540P-NEH - ProLine® XE Condensing Ultra-Low NOx Outdoor 199,000 BTU Natural Gas Tankless Water Heater
    Model GT-540P-NEH 100
    What to Expect from this Model
    modal-clock
    Unlimited
    single shower length
    modal-frame
    Unlimited
    back-to-back
    modal-frame
    2.7 showers
    at the same time
    modal-tank-capacity
    Unlimited
    max tub size
    modal-cost
    $200/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • ENERGY STAR® certified with up to 0.95 UEF rating
    • Easy-link up to four like units for increased flow capacity for larger applications
    • Provides flexible venting with PVC, CPVC, or ABS Pipe for Intake and Exhaust (solid core only)
    • Compact Design—Space-saving tankless design fits seamlessly into modern homes
    • Durable Heat Exchanger—Copper primary heat exchanger and marine-grade Type 316L stainless steel secondary heat exchanger for corrosion resistance
    • Safety Features—Includes Air-Fuel Ratio (AFR) sensor, exhaust and water temperature safety controls, overheat cut-off fuse, and internal freeze protection system
    • Includes integrated temperature and pump controls with advanced diagnostics that simplify installation and troubleshooting
    • Includes a wall mount temperature remote controller and advanced diagnostics to simplify troubleshooting
    • Common vent up to 8 units
    • 15-Year heat exchanger warranty

    • Condensing Tankless water heaters maximize energy efficiency by capturing and reusing heat from exhaust gases, achieving up to a 0.95 Uniform Energy Factor (UEF). This high efficiency reduces operating costs and minimizes environmental impact, making them an ideal choice for residential and commercial applications. The integrated recirculation pump ensures that hot water is readily available, reducing wait time and saving water. The primary heat exchanger is constructed from commercial-grade copper, which is highly resistant to erosion, while the secondary heat exchanger is made from type 316L stainless steel to protect against corrosion. Features such as an Air-Fuel Ratio (AFR) sensor, exhaust and water temperature safety controls, and an overheat cut-off fuse enhance reliability and user safety. The heaters also include advanced diagnostics and integrated temperature controls, simplifying installation, troubleshooting, and maintenance.

      Available in both indoor and outdoor models, these heaters offer flexibility to suit various installation needs. Indoor models feature factory-installed power cords and integrated controls, while outdoor models come with a wall-mounted temperature remote controller for added convenience. Easy-link up to four like units for increased flow capacity for larger applications.

    Specifications
    Tech Specs
    UEF
    0.95
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Destination Country
    US
    ENERGY STAR® Certified
    Yes
    Fuel Source
    NATURAL
    Installation Type
    OUTDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    5.8 GPM
    Minimum BTUs
    15,000
    Application
    RESIDENTIAL
    Shipping Height
    33.25
    Shipping Length
    21.75
    Shipping Width
    15.625
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Shipping Weight
    70 lbs
