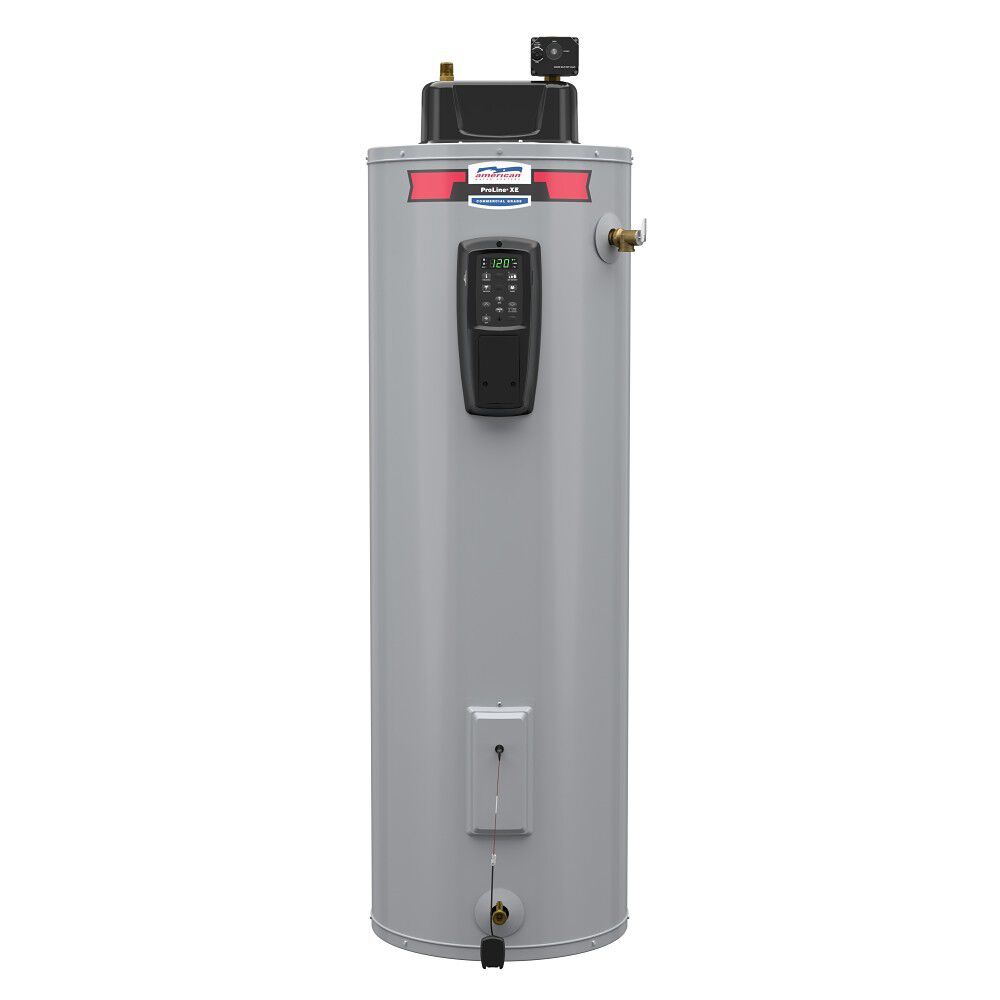

EE10X-40H -Proline® XE 40-Gallon Tall Smart Valve Electric Grid-Capable Water Heater - 10 Year Warranty

Model EE10X-40H 100
Capacity (Gallons)
Height Classification

  • CTA-2045 Port—Integrates with Utility Smart Grid Programs for energy efficiency and cost savings
  • Highly efficient operation with a UEF of 0.92
  • iCOMM™ Wi-Fi Connectivity—Enables remote control of water temperature, operating modes, and scheduling through smartphone app for ultimate convenience

    • EE10X-40H -Proline® XE 40-Gallon Tall Smart Valve Electric Grid-Capable Water Heater - 10 Year Warranty
    Model EE10X-40H 100
    Find a Local Pro
    Find a Local Pro
    Product Details
    • CTA-2045 Port—Integrates with Utility Smart Grid Programs for energy efficiency and cost savings
    • Highly efficient operation with a UEF of 0.92
    • iCOMM™ Wi-Fi Connectivity—Enables remote control of water temperature, operating modes, and scheduling through smartphone app for ultimate convenience
    • Leak Detection Sensor—Alerts homeowners with an audible alarm when water is detected, preventing potential damage
    • Automatic Shut-Off Valve—Closes the cold water inlet automatically when a leak is detected, offering enhanced protection
    • Dual 5500-Watt Stainless Steel Heating Elements—Ensures fast recovery and reliable, long-lasting performance
    • Blue Diamond® Glass Coating—Provides superior corrosion resistance, extending the life of the water heater
    • CoreGard™ Anode Rod—Features a stainless steel core for extended tank protection and durability
    • Enhanced-Flow Brass Drain Valve—Simplifies maintenance with a tamper-resistant design and easy operation
    • 10-year limited tank and parts warranty

      • The ProLine® XE Smart Electric Grid-Capable water heaters deliver advanced technology and unmatched convenience to modern households. Featuring iCOMM™ Wi-Fi connectivity, these water heaters empower homeowners with remote control through the American app, allowing them to adjust water temperature, switch operating modes, and schedule hot water demand for optimal performance. With built-in leak detection sensors and an automatic shut-off valve, they provide peace of mind by protecting your home from potential water damage. The CTA-2045 port facilitates integration with local Utility Smart Grid Programs, making these water heaters a smart and eco-friendly choice.

      Engineered for durability and efficiency, the ProLine® XE models boast dual 5500-watt stainless steel heating elements for rapid recovery and long-lasting performance. The Blue Diamond® Glass Coating and CoreGard™ Anode Rod offer superior corrosion resistance, extending the life of the tank. With eco-friendly insulation, high energy factors, and a self-cleaning dip tube, these water heaters maximize energy savings while delivering consistent hot water. Designed to meet rigorous safety and efficiency standards, the ProLine® XE series is the perfect blend of innovation, reliability, and sustainability for your home.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    36 Gallons
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    No
    Water Connection Location
    TOP
    Water Connection Size
    3/4-in"
    First Hour Rating
    64 Gallons
    ASME Certified
    No
    Destination Country
    US
    Height to T&P
    53.25
    Installation Type
    INDOOR
    Max Wattage
    5,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Shipping Height
    69.5
    Shipping Length
    24.19
    Shipping Width
    21
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    65.25"
    Diameter
    20"
    Width
    20"
    Shipping Weight
    121 lbs
