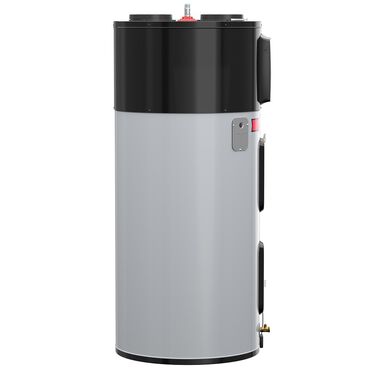

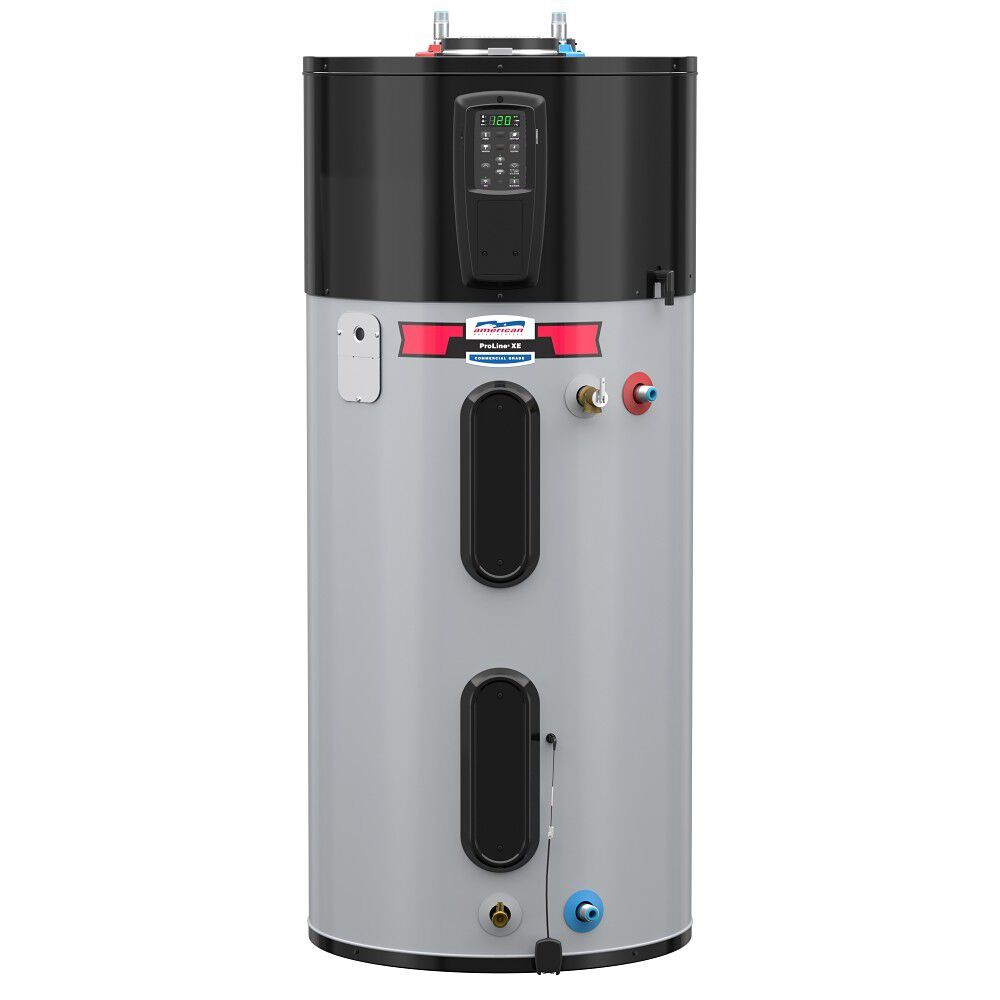

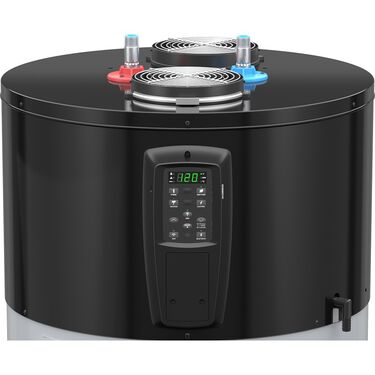

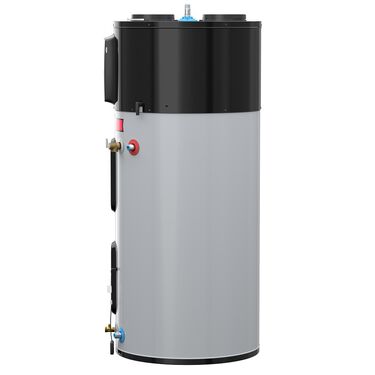

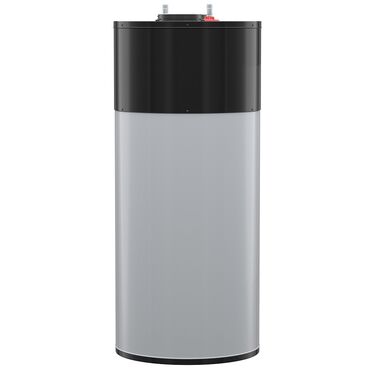

ProLine® XE AL Smart 66-Gallon Residential Hybrid Electric Heat Pump Water Heater - 10 Year Warranty

Model HPS10266H045DV 210
Capacity (Gallons)

  • ENERGY STAR® certified with up to 3.87 UEF rating
  • Leak detection sensor alerts users in case of leaks for added peace of mind

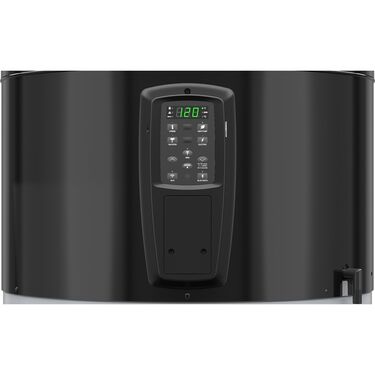

  • Smart Control—Manage your water heater conveniently through the iCOMM™ app
  • ProLine® XE AL Smart 66-Gallon Residential Hybrid Electric Heat Pump Water Heater - 10 Year Warranty
    Model HPS10266H045DV 210
    Product Details
    • ENERGY STAR® certified with up to 3.87 UEF rating
    • Leak detection sensor alerts users in case of leaks for added peace of mind
    • Smart Control—Manage your water heater conveniently through the iCOMM™ app
    • Flexible Installation—Designed to fit in tight spaces with zero clearance required
    • Whisper-quiet operation at 45 dBA, ensuring minimal noise
    • Multiple operating modes to maximize efficiency and performance
    • Vacation mode reduces operating costs while you're away
    • Smart anode adapts to local water conditions, extending the life of the water heater
    • 10-Year limited tank & parts warranty

    • The Hybrid Electric Heat Pump Water Heater with anti-leak technology is the ultimate solution for homeowners seeking energy efficiency, cost savings, and durability. This water heater combines exceptional performance with innovative features to deliver reliable hot water while reducing utility bills and protecting your home from leaks.

      Smart Connectivity enables you to monitor and control your water heater remotely through the free iCOMM™ app. Receive real-time alerts and notifications for maintenance and performance updates.The HPS10280H045DV operates efficiently in ambient temperatures as low as 37°F, ensuring high performance year-round. It provides exceptional energy efficiency, saving you up to $600 annually on utility bills.* This models is ENERGY STAR® certified, making it eligible for state and local utility rebates. Enjoy peace of mind with a 10-year limited tank and parts warranty.

      *Comparing 80-gallon Heat Pump AL against pre-2015 similarly-sized standard electric using DOE EF to UEF conversion rates and $0.14 per kWh electricity cost. Savings may vary.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    66 Gallons
    Rated Storage Volume
    67 Gallons
    UEF
    3.7
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years

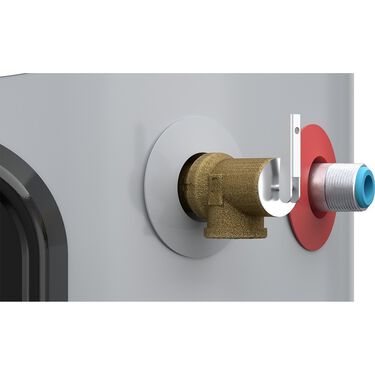

    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    Water Connection Size
    0.75"
    First Hour Rating
    82 Gallons
    ASME Certified
    No
    NEEA Certified
    Yes
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Height to T&P
    38.50
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    70
    Shipping Length
    32
    Shipping Width
    28.25
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    63.18"
    Diameter
    26.5"
    Width
    26.5"
    Shipping Weight
    289 lbs
