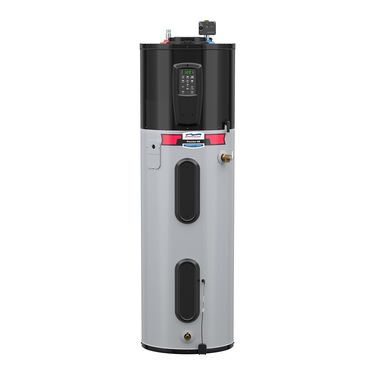

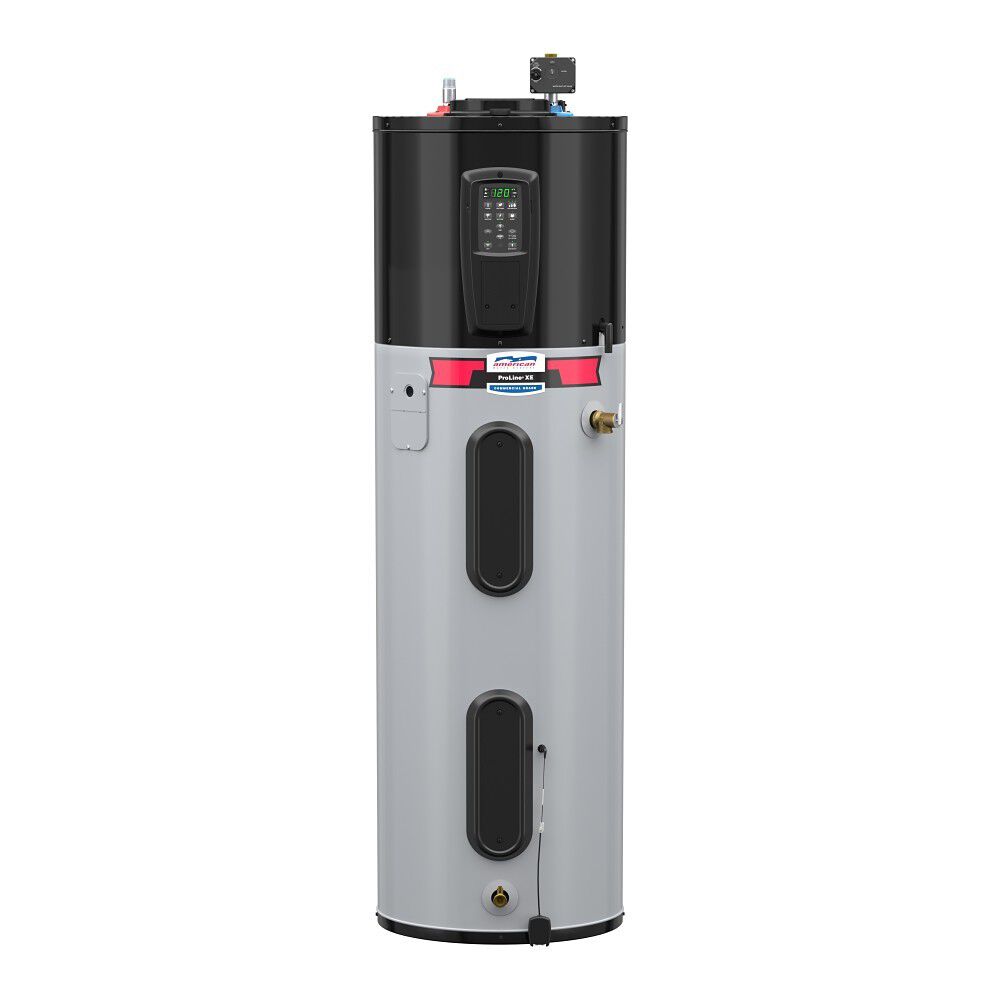

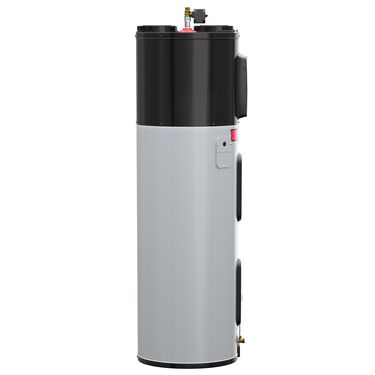

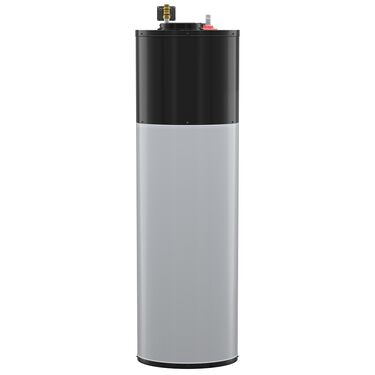

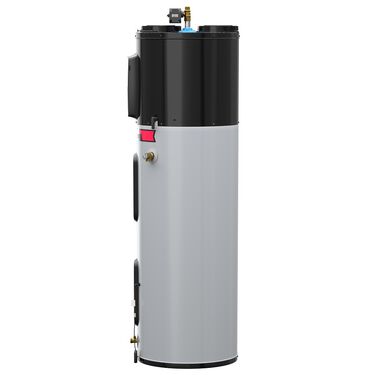

Proline® MAX 80-Gallon Smart Hybrid Electric Heat Pump Water Heater with Premium Smart Valve Technology

Model HPA10280H045DV 210
Capacity (Gallons)

  • Delivers 95-gallon first hour rating with the assistance of dual 4,500-watt copper heating elements
  • *Up to 40% More Hot Water—Choose from three Hot Water+ levels for up to 40% more hot water than a standard heat pump
  • Smart Leak Protection Technology—Detects, alerts and notifies to help protect your water heater in the event of a leak
  • Proline® MAX 80-Gallon Smart Hybrid Electric Heat Pump Water Heater with Premium Smart Valve Technology
    Model HPA10280H045DV 210
    Product Details

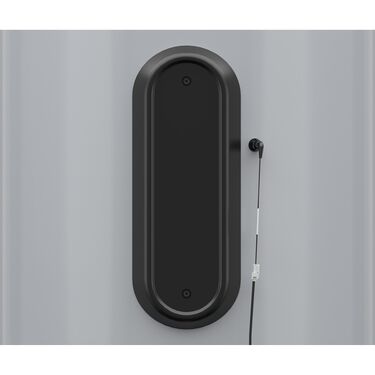

    • Delivers 95-gallon first hour rating with the assistance of dual 4,500-watt copper heating elements
    • *Up to 40% More Hot Water—Choose from three Hot Water+ levels for up to 40% more hot water than a standard heat pump
    • Smart Leak Protection Technology—Detects, alerts and notifies to help protect your water heater in the event of a leak
    • High-Efficiency & Lower Costs—4X more efficient, save up to $600 per year
    • Whisper-Quiet Operation at 45 dBA
    • User-Friendly, Easy To Control—Integrated iCOMM™ Smart Connectivity allows simple control and alerts/notifications through free app
    • Up to $1,800 in Local Utility Rebates may be available in your area

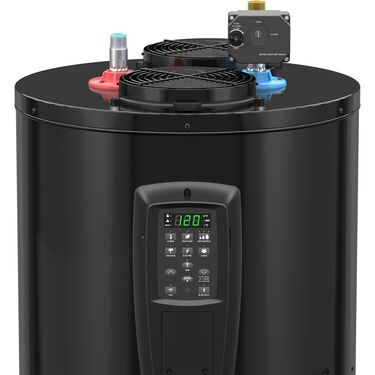

    • Flexible Design—Includes top & front water connections and zero clearance requirements
    • 10-Year limited tank & parts warranty

    • The 4X more efficient, cost-effective Proline® MAX Smart Hybrid Electric Heat Pump water heater can deliver larger volumes of hot water using innovative smart valve technology and Hot Water+ customized operating modes. This heat pump water heater uses heat from the surrounding air to heat water—saving up to $600 per year on operating costs.*Premium features include vacation and guest modes which adjust to changes in hot water demand in the home. Choose from three Hot Water+ levels for up to 40% more hot water. Dual heating elements enable quick recovery during periods of high demand.

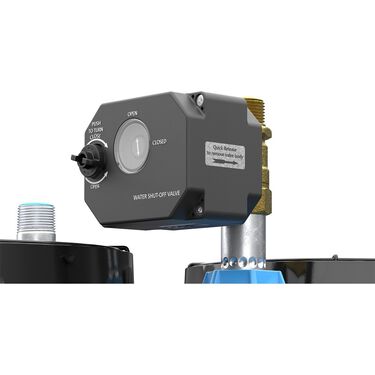

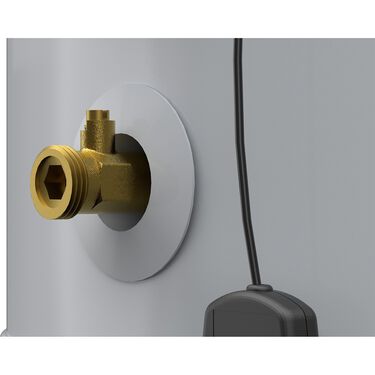

      The Proline® MAX features advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater.The HPA10280H045DV provides peace of mind with Smart Leak Protection technology, which detects, alerts and send notifications to help protect your water heater in the event of a leak. Smart Sensor leak detection and optional automatic cold water shut-off provide enhanced protection. Enjoy peace of mind with a 10-year limited tank and parts warranty.

      *Comparing 80-gallon Proline® MAX heat pump against pre-2015 similarly-sized standard electric using DOE EF to UEF conversion rates and $0.14 per kWh electricity cost. Savings may vary.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    80 Gallons
    Rated Storage Volume
    81 Gallons
    UEF
    3.88
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    Water Connection Location
    TOP
    Water Connection Size
    3/4-in"
    First Hour Rating
    95 Gallons
    ASME Certified
    No
    Amperes
    23.6
    Destination Country
    US

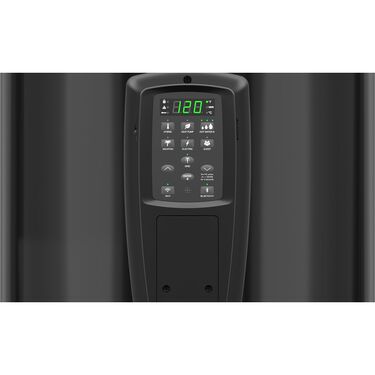

    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes

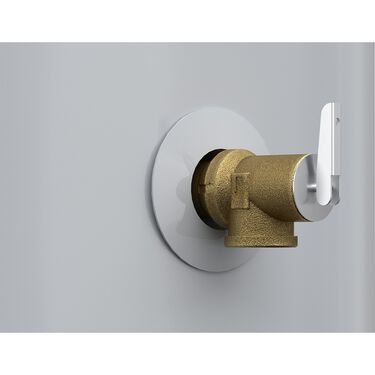

    Height to T&P
    45.25
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    78
    Shipping Length
    32
    Shipping Width
    28.25
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    72"
    Diameter
    26.5"
    Shipping Weight
    302 lbs
