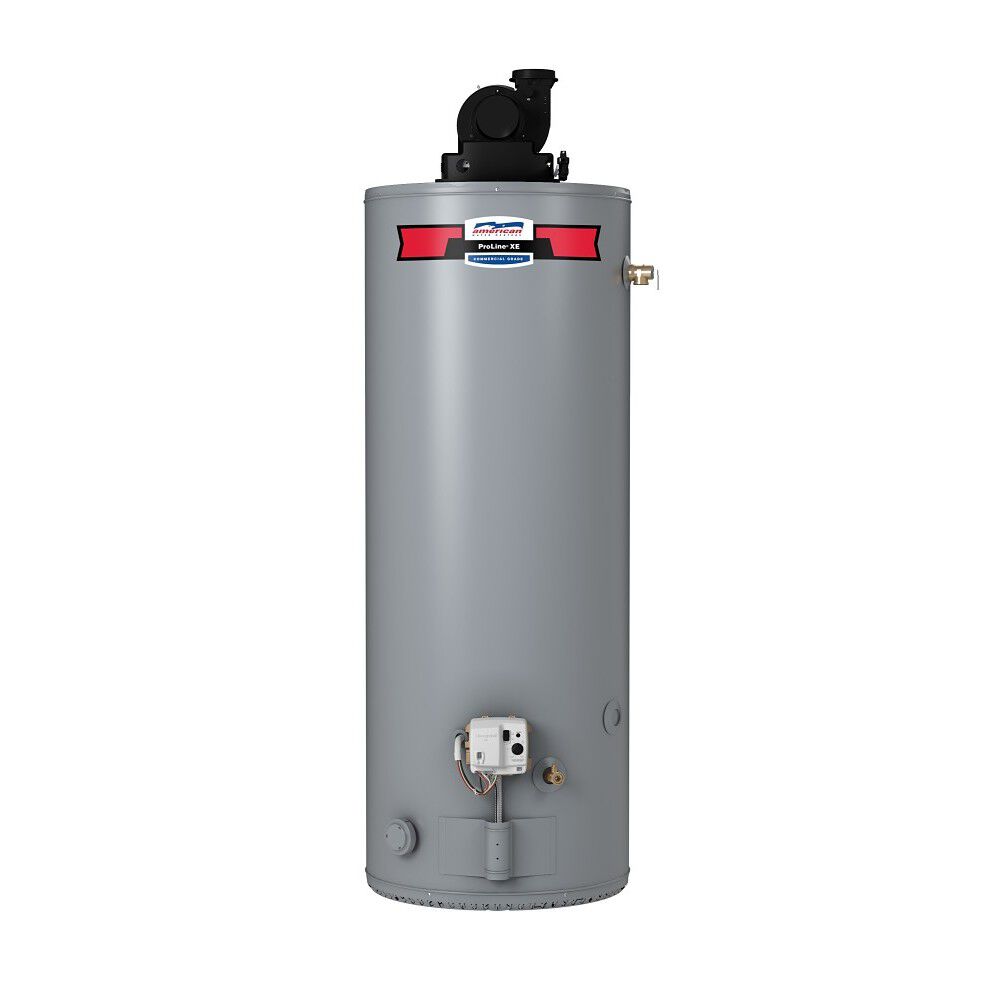

PVG6240T50PVSL - ProLine® XE 40-Gallon 50,000 BTU Power Vent Tall Liquid Propane Water Heater - 6 Year Warranty

Model PVG6240T50PVSL 201
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Protected sensor—Detects the presence of flammable vapors and automatically disables the burner to prevent ignition
  • High Performance—First-hour ratings up to 87 gallons
  • Reduced NOx emissions comply with air quality management district regulations
  • PVG6240T50PVSL - ProLine® XE 40-Gallon 50,000 BTU Power Vent Tall Liquid Propane Water Heater - 6 Year Warranty
    Model PVG6240T50PVSL 201
    Product Details
    • Protected sensor—Detects the presence of flammable vapors and automatically disables the burner to prevent ignition
    • High Performance—First-hour ratings up to 87 gallons
    • Reduced NOx emissions comply with air quality management district regulations
    • Flexible Installation—Exclusive 3-position rotatable blower outlet & venting options up to 180 feet
    • User-Friendly Controls—State-of-the-art electronic gas control and LED diagnostics for precise temperature adjustments and easy troubleshooting
    • Durable Design—Diamond® Glass Coating and DynaClean™ Diffuser Dip Tube provide long-lasting performance and reliability
    • Energy Efficient—Built-in heat traps and foam insulation reduce heat loss, saving energy and lowering utility bills
    • Versatile Options—Available in natural gas and propane models to suit your home’s needs
    • 6-Year limited tank and parts warranty

    • ProLine® XE Power Vent water heaters offer homeowners a reliable and energy-efficient solution for their hot water needs. Designed with convenience in mind, these water heaters feature a three-position rotatable blower outlet, making installation flexible and hassle-free. These models accommodate vent runs up to 180 feet, ensuring compatibility with various home layouts. A built-in sensor detects flammable vapors and automatically disables the burner to prevent accidents. The environmentally-friendly foam insulation and built-in heat traps prevent heat loss, increasing energy efficiency.

      The electronic gas control system allows precise temperature adjustments, while the LED control light provides clear diagnostics and operation status. These water heaters are built to last, with a Blue Diamond® glass coating that offers superior corrosion resistance and a DynaClean™ diffuser dip tube that minimizes sediment buildup for maximum hot water output. The enhanced-flow brass drain valve ensures quick and easy draining for maintenance. Available in both natural gas and propane options, these water heaters are certified for use at elevations up to 10,100 feet and backed by a 6-year limited warranty.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.7
    Maximum BTUs
    50,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Emissions
    Low NOx
    First Hour Rating
    87 Gallons
    ASME Certified
    No
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    Yes
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    71
    Shipping Length
    29.25
    Shipping Width
    21.63
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    59.5"
    Diameter
    20"
    Shipping Weight
    176 lbs
    Vent Type
    Power Vent
