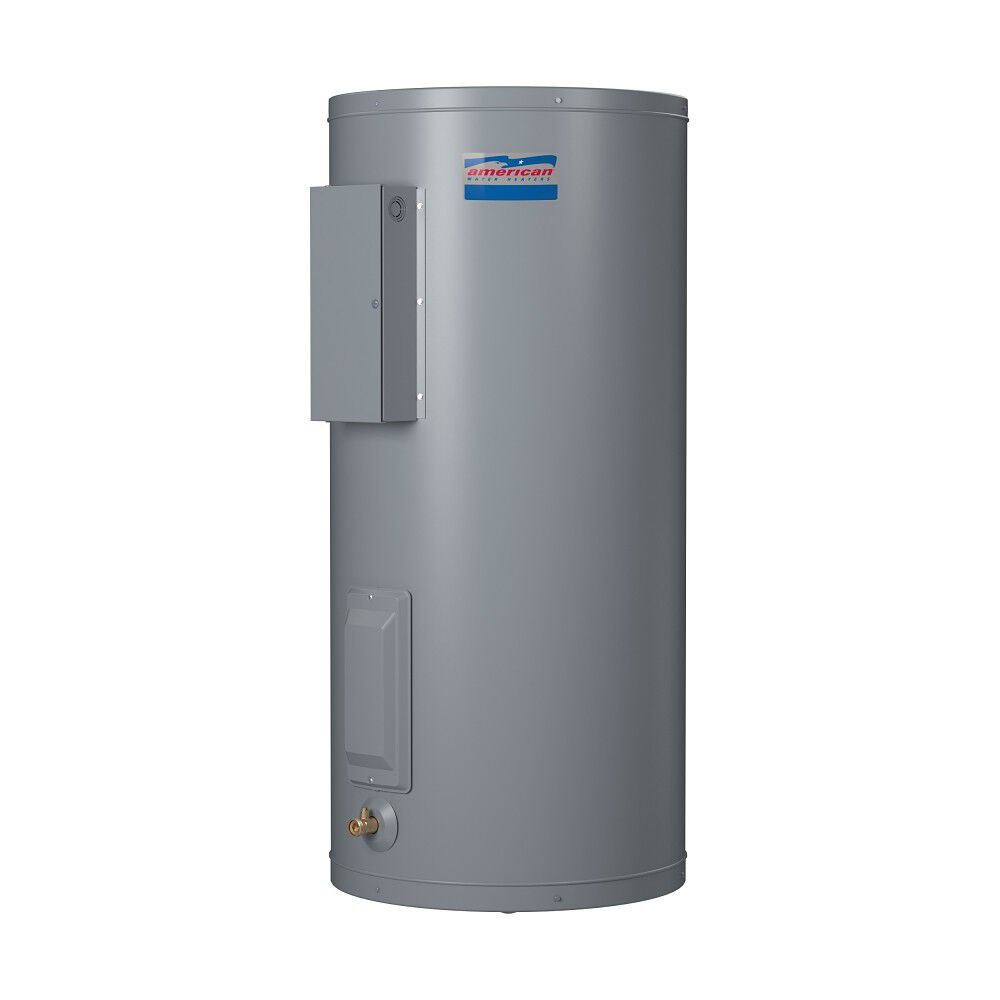

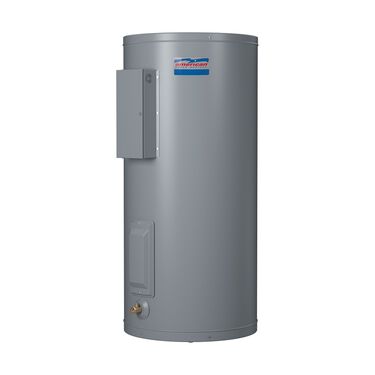

LDCE32-80R-122DV - 76-Gallon Tall Commercial Light Duty Electric Water Heater

Model LDCE32-80R-122DV 110
Capacity (Gallons)
Height Classification
Advanced Options
Max Wattage
Voltage

  • Allows temperature settings between 110°F and 181°F
  • Factory-installed terminal block makes setup quick and hassle-free
  • Wide Capacity Range—Available in sizes from 6 to 119 gallons
  • LDCE32-80R-122DV - 76-Gallon Tall Commercial Light Duty Electric Water Heater
    Model LDCE32-80R-122DV 110
    Product Details
    • Allows temperature settings between 110°F and 181°F
    • Factory-installed terminal block makes setup quick and hassle-free
    • Wide Capacity Range—Available in sizes from 6 to 119 gallons
    • Robust Design—Bonderized undercoat and baked enamel finish provide superior protection and durability
    • Glass lined Tanks—Provides enhanced durability and corrosion resistance
    • Zinc-Plated Copper Heating Elements—Medium watt density minimizes scale build-up and optimizes heat transfer
    • Energy Efficiency—Meets standby loss requirements of the U.S. Department of Energy and ASHRAE/IESNA 90.1 standards
    • Safety Features—Includes CSA-certified T&P relief valve and manual reset high-temperature cutoff
    • Corrosion Protection—High-density anode rod maximizes tank longevity
    • Includes a three-year limited warranty on the tank for peace of mind

    • Light Duty Commercial Electric Water Heaters are designed to deliver reliable and efficient performance for businesses requiring consistent hot water supply. With capacities ranging from 6 to 119 gallons, these heaters are ideal for various commercial applications. The glass lined tank ensures durability and corrosion resistance, while the zinc-plated copper heating elements minimize scale build-up and extend the lifespan of the unit. Featuring adjustable temperature controls, high-temperature cutoffs, and simplified circuitry, these water heaters offer ease of operation and maintenance. Their compliance with U.S. Department of Energy standards and ASHRAE/IESNA 90.1 ensures energy efficiency, making them a cost-effective solution for commercial needs.

      These models feature a robust design with a Bonderized undercoat and baked enamel finish for long-lasting protection. The factory-installed terminal block simplifies installation. Equipped with an anode rod for maximum corrosion protection and a CSA-certified T&P relief valve, these heaters prioritize safety and reliability. Whether you need a compact lowboy model or a standard upright design, these water heaters provide dependable performance backed by a three-year limited warranty, ensuring peace of mind.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    80 Gallons
    Rated Storage Volume
    76 Gallons
    Thermal Efficiency
    98%
    Power Source
    ELECTRIC
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    52.15
    Installation Type
    INDOOR
    Max Wattage
    12,200
    Number of Elements
    2
    Application
    COMMERCIAL
    Shipping Height
    61
    Shipping Length
    26.75
    Shipping Width
    26.75
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    60.25"
    Diameter
    24"
    Width
    20"
    Shipping Weight
    196 lbs
