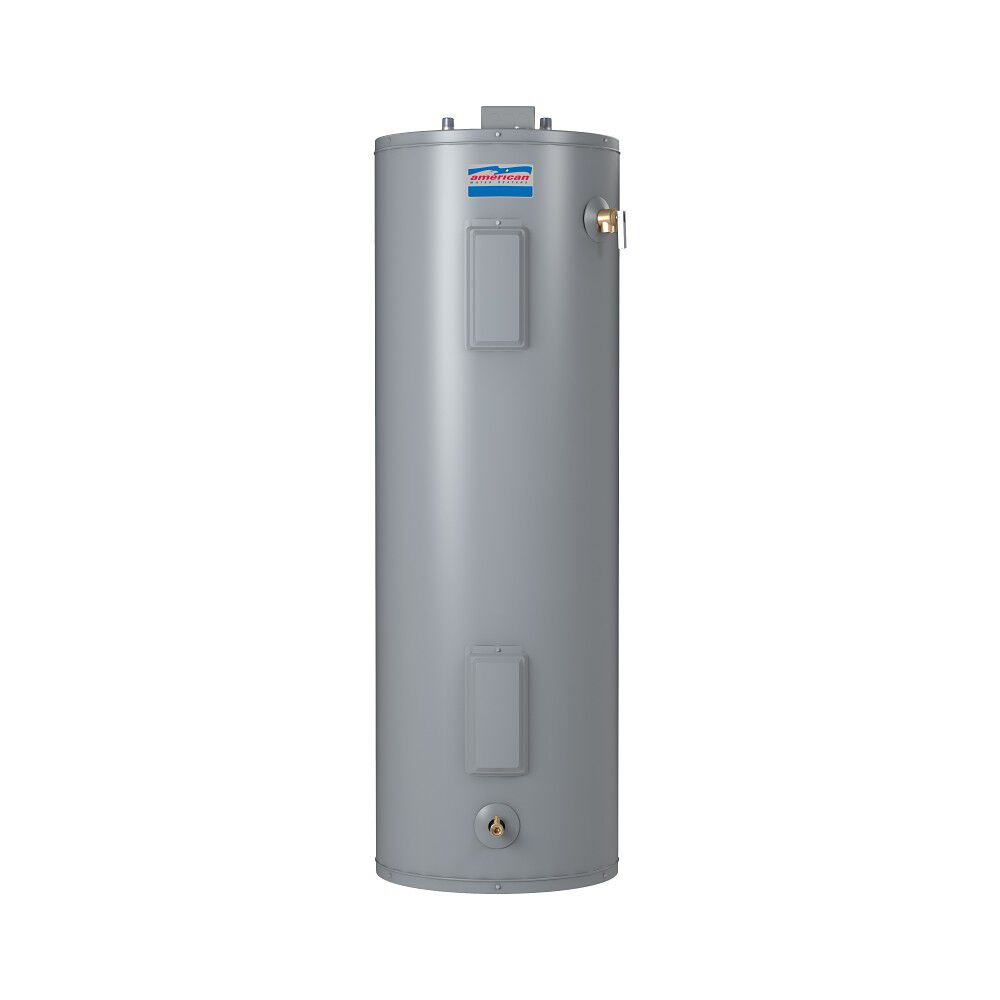

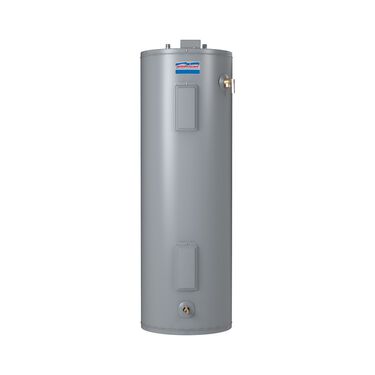

VSCE62-80H - 80-Gallon Light-Service Commercial Electric Water Heater

Model VSCE62-80H 250
Capacity (Gallons)
Height Classification
Advanced Options
Max Wattage
Voltage

  • Dual 6.1 KW zinc-plated copper sheathed elements
  • Operates on 277V single-phase for commercial systems
  • Top Mounted Recessed Junction Box—Ensures convenient and safe electrical connections
  • VSCE62-80H - 80-Gallon Light-Service Commercial Electric Water Heater
    Model VSCE62-80H 250
    Product Details
    • Dual 6.1 KW zinc-plated copper sheathed elements
    • Operates on 277V single-phase for commercial systems
    • Top Mounted Recessed Junction Box—Ensures convenient and safe electrical connections
    • Allows temperature control from 120º to 181ºF with a manual reset high-temperature cutoff
    • Designed to handle up to 150 PSI for reliable performance
    • UL Certification—Certified to UL 1453 standards for commercial electric water heaters
    • Factory Installed CSA-certified & ASME-rated temperature and pressure relief valve for safety
    • CoreGard™ Anode Rod—Features a stainless steel core for extended anode rod life and superior tank protection
    • Solid brass, tamper-resistant, ball-type drain valve for easy and efficient draining
    • 6-year limited tank warranty

    • Light-Service Commercial Electric Water Heaters are expertly designed to meet the demands of commercial applications with intermittent hot water needs. Featuring a durable glass lined tank, these water heaters ensure long-lasting performance and superior protection against corrosion. Equipped with two powerful 6.1 KW zinc-plated copper sheathed heating elements, they deliver reliable and efficient heating. The adjustable thermostat allows precise temperature control ranging from 120º to 181ºF, while the manual reset high-temperature cutoff ensures safety during operation.

      These models feature a CoreGard™ anode rod with a stainless steel core for extended tank protection and a tamper-resistant enhanced-flow brass drain valve for easy maintenance. Certified to UL 1453 standards, these heaters are equipped with factory-installed CSA-certified and ASME-rated temperature and pressure relief valves for added safety. They are available in various gallon capacities to meet diverse commercial needs. Backed by a 6-year limited tank warranty and a 1-year limited parts warranty, these water heaters provide peace of mind and dependable performance.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    80 Gallons
    Rated Storage Volume
    72 Gallons
    Thermal Efficiency
    98%
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    ASME Certified
    No
    Amperes
    44.04
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    52.25
    Installation Type
    INDOOR
    Max Wattage
    12,200
    Number of Elements
    2
    Application
    COMMERCIAL
    Shipping Height
    64.38
    Shipping Length
    28.25
    Shipping Width
    25.13
    Side Loop
    No
    Voltage
    277
    Dimension & Venting
    Type
    Water Heater
    Height
    60.5"
    Diameter
    24"
    Width
    24"
    Shipping Weight
    174 lbs
