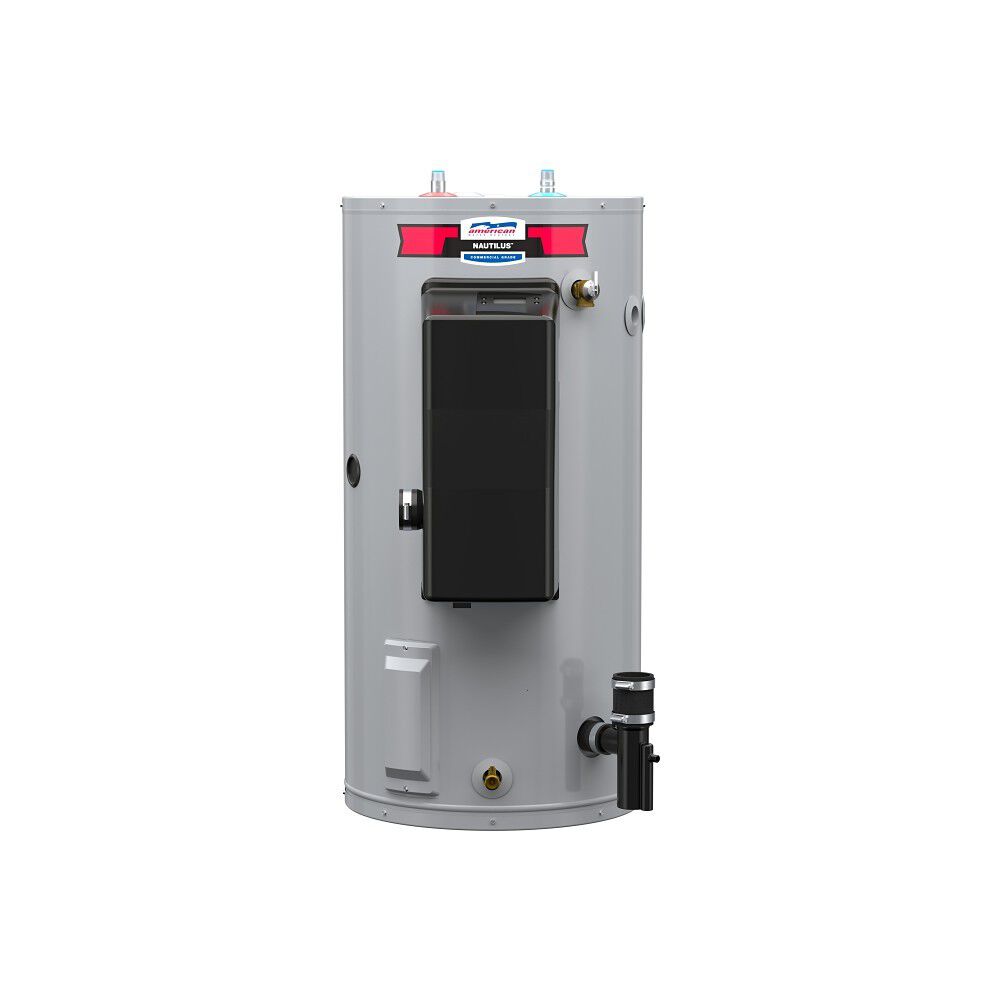

PCG82-40S50L - Nautilus™ 40-Gallon High Value Condensing Power Vent Ultra-Low NOx Natural Gas Water Heater - 8 Year Warranty

Model PCG82-40S50L 120
Capacity (Gallons)
Fuel Source

  • ENERGY STAR® certified with a UEF of 0.90
  • Continuous Hot Water Delivery—Provides over 2.5 GPM for uninterrupted hot water supply
  • Leak Detection—Smart sensor alerts audibly & visually if a leak occurs
  • PCG82-40S50L - Nautilus™ 40-Gallon High Value Condensing Power Vent Ultra-Low NOx Natural Gas Water Heater - 8 Year Warranty
    Model PCG82-40S50L 120
    Product Details
    • ENERGY STAR® certified with a UEF of 0.90
    • Continuous Hot Water Delivery—Provides over 2.5 GPM for uninterrupted hot water supply
    • Leak Detection—Smart sensor alerts audibly & visually if a leak occurs
    • Advanced Electronic Control—Offers precise temperature control & built-in diagnostics
    • Helical Internal Heat Exchanger—Enhances heat transfer, ensures even heat distribution, and reduces lime scale formation
    • Power Vent and Power Direct Vent Design—Allows flexible installation with vertical and horizontal venting options
    • Side-Mounted Recirculating Taps—Supports combination space heating and water heating applications
    • Leak Protection Technology—Includes dual sacrificial anodes and optional powered anode for enhanced tank protection
    • 8-year limited tank and parts warranty

    • The Nautilus™ HV High Value Condensing water heater delivers exceptional performance and efficiency for residential use. These water heaters provide continuous hot water at a constant flow of over 2.5 gallons per minute, ensuring reliable service for shower after shower. The precise electronic controls allow users to manage temperature settings effortlessly. A helical internal heat exchanger optimizes heat transfer by keeping hot combustion gases in the tank longer, ensuring even heat distribution and reducing lime scale formation for sustained efficiency over time.

      These water heaters combine durability and versatility to meet diverse household needs. The side-mounted hot and cold recirculating taps enable integration with combination space heating applications, while the power vent and power direct vent design allow flexible installation using PVC, CPVC, or polypropylene pipes. Nautilus™ HV models feature superior corrosion resistance with Blue Diamond® glass coating and dual sacrificial anodes, ensuring long-lasting protection against leak. Available in natural gas and propane options, these units meet stringent safety and efficiency standards, offering homeowners a dependable solution backed by an 8-year limited warranty.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    39.4 Gallons
    UEF
    0.9
    Maximum BTUs
    50,000
    Power Source
    GAS
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Ultra-Low NOx
    First Hour Rating
    86 Gallons
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    ENERGY STAR® Certified
    Yes
    Fuel Source
    NATURAL
    Height to T&P
    36.50
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    53.25
    Shipping Length
    31
    Shipping Width
    28.4
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    47"
    Diameter
    22"
    Shipping Weight
    216 lbs
    Vent Type
    Power Vent
