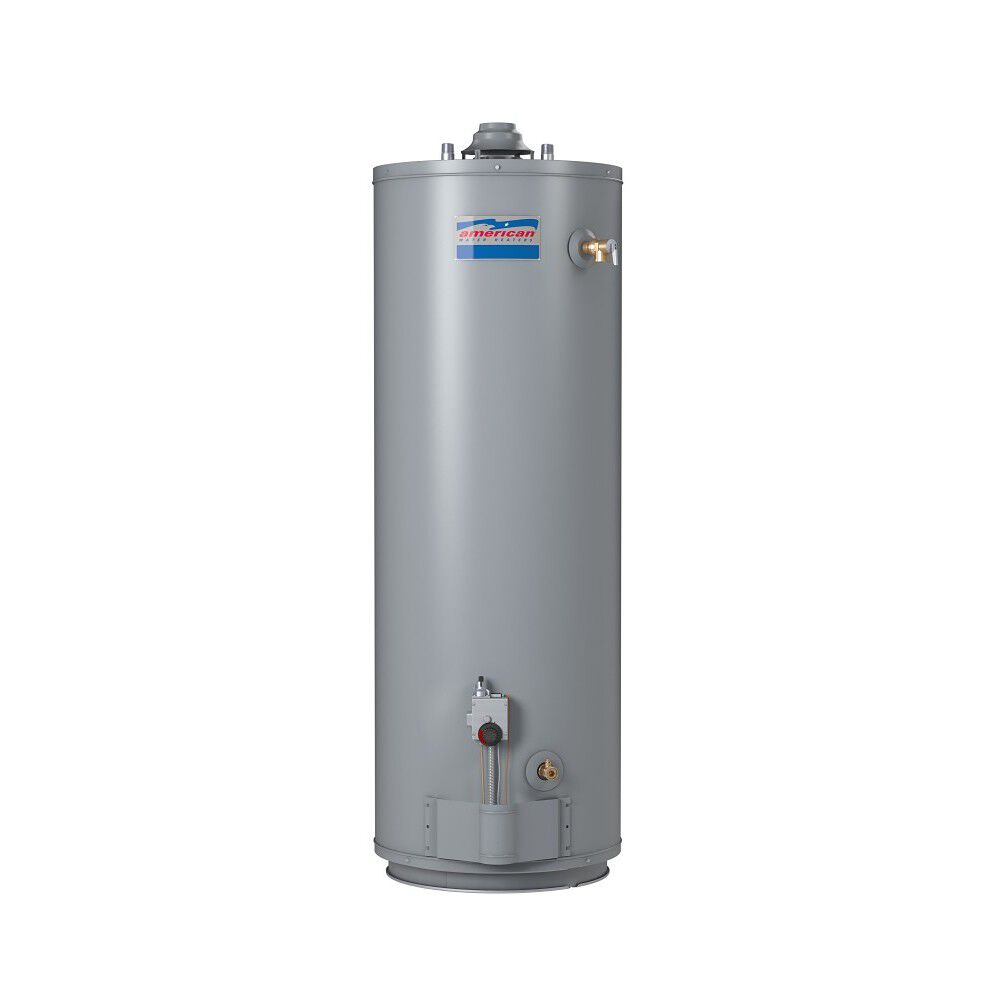

CG32-75T75-4NOV - Commercial Non-Dampered Natural Gas Water Heater - 75,100 BTUs

Model CG32-75T75-4NOV 400
Capacity (Gallons)
Fuel Source

  • 75,100 BTUs input
  • Fully automated controls with safety shutoff
  • Green Choice® gas burner complies with Low-NOx emissions
  • CG32-75T75-4NOV - Commercial Non-Dampered Natural Gas Water Heater - 75,100 BTUs
    Model CG32-75T75-4NOV 400
    Product Details
    • 75,100 BTUs input
    • Fully automated controls with safety shutoff
    • Green Choice® gas burner complies with Low-NOx emissions
    • Maximum temperature setting up to 180°F
    • Push-Button Piezo Ignitor for one-hand push-button spark ignition
    • Enhanced-flow brass drain valve—Features a 1/4 turn radius for full straight-through water flow and quick shutoff
    • Blue Diamond® Glass Coating for superior corrosion resistance
    • 3-Year limited tank/ 1-Year limited parts warranty

    • The Non-Dampered Commercial Gas Water Heaters feature fully automatic controls and a safety shutoff system, ensuring dependable operation without the need for electric connections. With a maximum temperature setting of up to 181°F and a patented Green Choice® gas burner that reduces NOx emissions by up to 33%, these heaters not only deliver exceptional performance but also comply with Low-NOx emission standards. The push-button piezo ignitor simplifies pilot lighting, while the Blue Diamond® glass coating provides superior corrosion resistance, ensuring long-lasting durability.

      The enhanced-flow brass drain valve allows for easy operation and quick shutoff, while the foam-insulated tank ensures energy efficiency. Available in 75 and 100-gallon capacities, these models are designed to handle high-demand commercial applications with ease. Enjoy peace of mind with the three-year limited tank warranty and a one-year limited parts warranty.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    74 Gallons
    Rated Storage Volume
    71 Gallons
    Thermal Efficiency
    80%
    Maximum BTUs
    75,100
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    Water Connection Location
    TOP
    ASME Certified
    No
    Destination Country
    US
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    COMMERCIAL
    Shipping Height
    60.75
    Shipping Length
    29
    Shipping Width
    31.25
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Diameter
    26.39"
    Shipping Weight
    270 lbs
