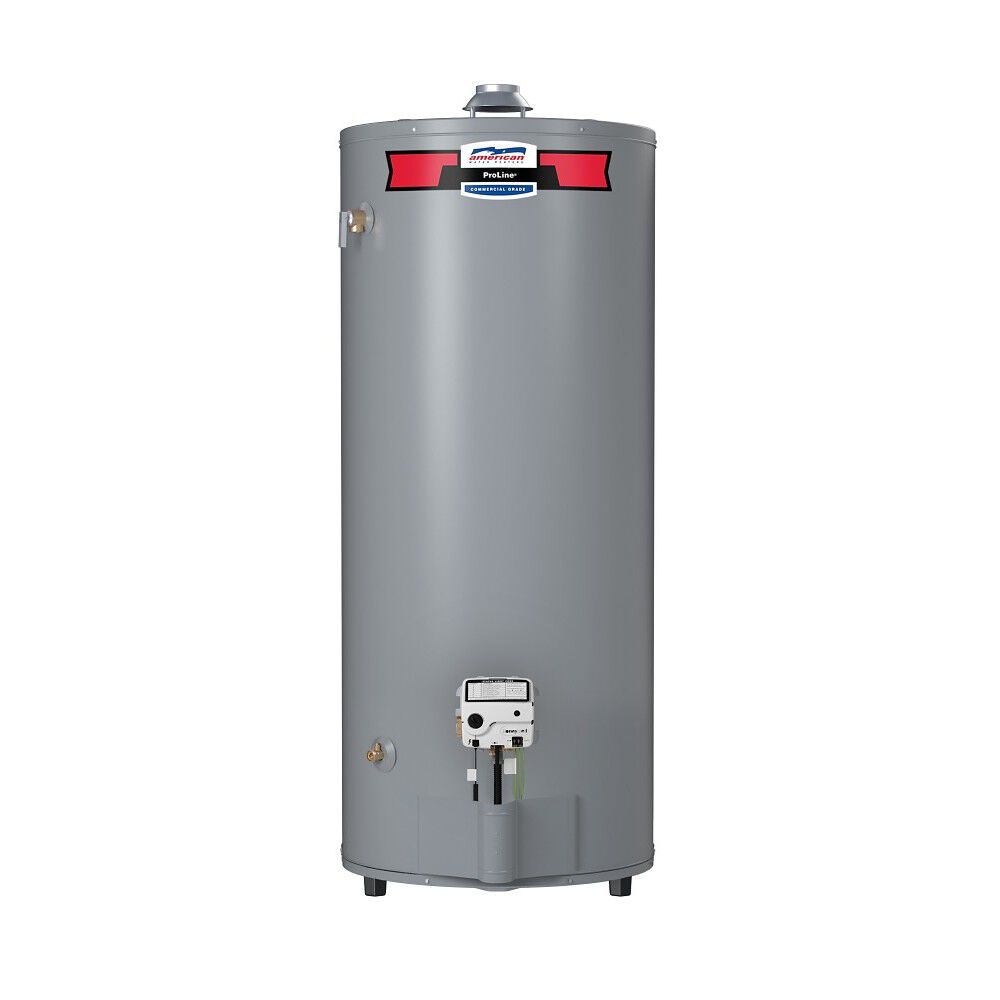

G62-100T77-4NOV - ProLine® 98-Gallon Residential Atmospheric Vent Gas Water Heater - 6 Year Warranty

Model G62-100T77-4NOV 400
Fuel Source
Capacity (Gallons)
Limited Tank Warranty
Side Loop

  • High Recovery Rates—Provides up to 81 gallons per hour recovery
  • Input up to 75,100 BTU for consistent hot water supply
  • Accurate, dependable control system requires no electric connections
  • G62-100T77-4NOV - ProLine® 98-Gallon Residential Atmospheric Vent Gas Water Heater - 6 Year Warranty
    Model G62-100T77-4NOV 400
    Product Details
    • High Recovery Rates—Provides up to 81 gallons per hour recovery
    • Input up to 75,100 BTU for consistent hot water supply
    • Accurate, dependable control system requires no electric connections
    • Eco-Friendly Burner—The Green Choice® gas burner meets Low-NOx standard
    • Easy Ignition—Push-button Piezo ignitor allows quick and effortless pilot lighting with one-hand operation
    • Durable CoreGard™ Anode Rod—Stainless steel core extends the life of the anode rod, offering superior tank protection against corrosion
    • Self-Cleaning Dip Tube—Reduces lime and sediment buildup, ensuring maximum hot water output and prolonged efficiency
    • Quick Installation—Factory-installed nipples and side tap connections simplify setup
    • Efficient Drain Valve—Solid brass, tamper-resistant, enhanced-flow drain valve allows fast and easy draining during maintenance
    • 6-Year limited tank and parts warranty

    • Proline® High Capacity Atmospheric Vent water heaters achieve the highest recoveries, offering capacity and input combinations of up to 98 gallons and 75,100 BTU, which produce recoveries of up to 81 gallons per hour. Their fully automatic controls ensure accurate and dependable operation without requiring electric connections, while the fixed automatic gas shutoff device enhances safety. The patented Green Choice® gas burner reduces NOx emissions by up to 33%, meeting Low-NOx emission requirements, making these water heaters eco-friendly and efficient.

      Engineered for durability and convenience, Proline® water heaters feature a self-cleaning dip tube that minimizes lime and sediment buildup, maximizing hot water output. The CoreGard™ anode rod, with its stainless steel core, extends the life of the tank, providing superior protection against corrosion. The Blue Diamond® glass coating further enhances corrosion resistance, outperforming industry-standard glass linings. The push-button Piezo ignitor simplifies pilot lighting, while factory-installed nipples and an enhanced-flow brass drain valve ensure faster installation and easy maintenance. These water heaters are backed by a 6-year limited warranty for peace of mind.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    98 Gallons
    Rated Storage Volume
    95 Gallons
    UEF
    0.58
    Thermal Efficiency
    80%
    Maximum BTUs
    75,100
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    1.25"
    Emissions
    Low NOx
    First Hour Rating
    170 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    5.00
    Fuel Source
    NATURAL
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    68.5
    Shipping Length
    33.5
    Shipping Width
    30.5
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    65"
    Diameter
    27.75"
    Shipping Weight
    340 lbs
    Vent Type
    Atmospheric Vent
