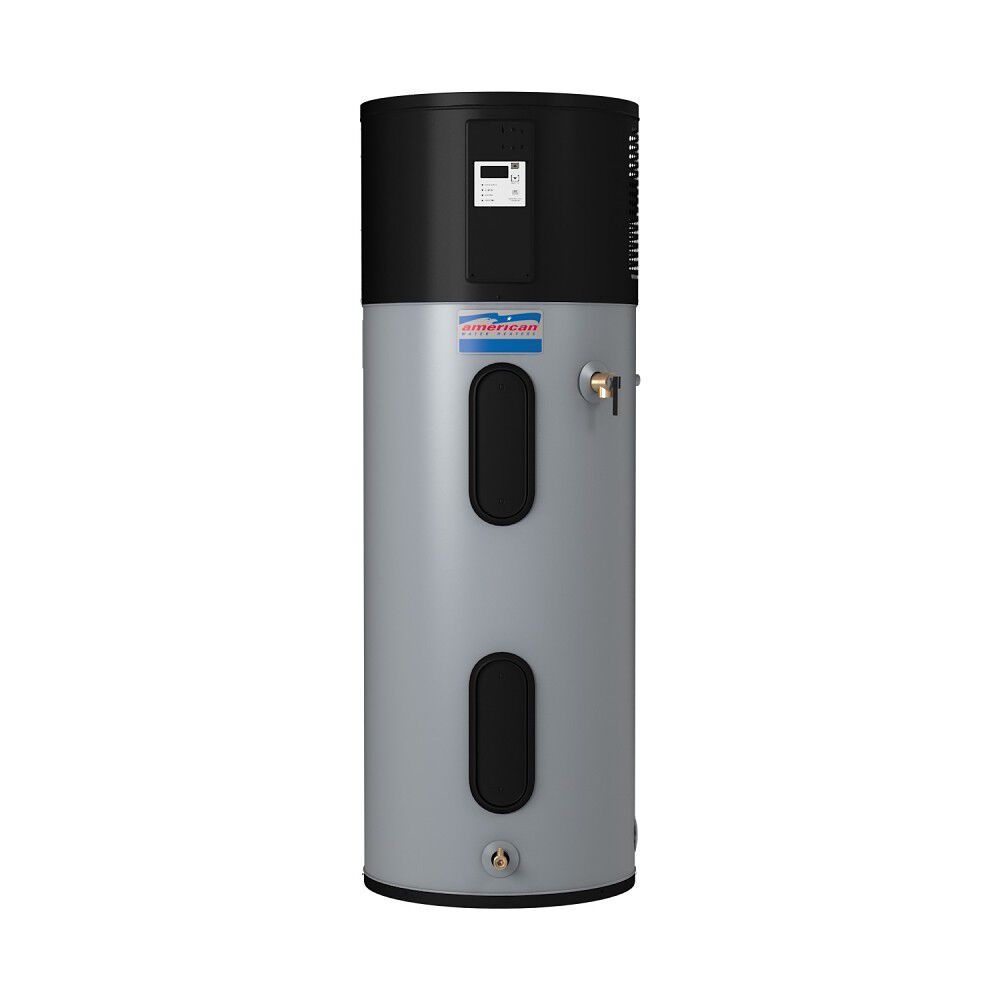

ProLine® XE 80-Gallon Residential Hybrid Electric Heat Pump Water Heater - 10 Year Warranty

Model HPHE10280H045DVN 130
Capacity (Gallons)
Limited Tank Warranty

  • ENERGY STAR® certified with a UEF of 3.45
  • Save up to 73% on annual energy costs
  • Electronic Interface—Easily control temperature, operating modes, and view diagnostics
  • ProLine® XE 80-Gallon Residential Hybrid Electric Heat Pump Water Heater - 10 Year Warranty
    Model HPHE10280H045DVN 130
    Product Details
    • ENERGY STAR® certified with a UEF of 3.45
    • Save up to 73% on annual energy costs
    • Electronic Interface—Easily control temperature, operating modes, and view diagnostics
    • CoreGard™ Anode Rod—Stainless steel core extends tank life and provides superior protection
    • Backup Heating Elements—Long-lasting elements ensure hot water availability in all conditions
    • Dry Fire Protection—Prevents damage by ensuring the tank is full of water during startup
    • Space-Saving Design—Optional air duct adapter kit allows installation in confined spaces
    • Dehumidifies and Cools Air—Ideal for basements or garages
    • Durable Brass Drain Valve—Enhanced flow for easy maintenance
    • 10-Year limited tank & parts warranty

    • The Hybrid Electric heat pump water heater from American is the most cost effective, energy-efficient option for consumers who want to save money on their utility bills. These models can reduce water heating costs up to 73% and save $306 or more on annual energy costs. Heat pump water heaters use heat from the surrounding air to heat water and can be installed in confined spaces with proper venting. A user-friendly interface allows you to choose from Efficiency, Hybrid, or Electric mode, depending on demand. Vacation mode reduces operating costs and provides freeze protection during an extended absence. Control temperature settings, operating mode, and view error messages from the simple display.

      Durability and user convenience are key highlights of hybrid electric heat pump water heaters. Equipped with a CoreGard™ anode rod featuring a stainless steel core, these units offer superior protection against tank corrosion, extending their lifespan. Features like dry fire protection, washable air filters, and optional air duct adapter kits enhance safety, ease of maintenance, and installation flexibility. Enjoy peace of mind with a 10-year limited tank and parts warranty.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    80 Gallons
    Rated Storage Volume
    82 Gallons
    UEF
    3.45
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    First Hour Rating
    86 Gallons
    ASME Certified
    No
    LEED Rating
    2.00
    NEEA Certified
    Yes
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Height to T&P
    46.75
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    74.75
    Shipping Length
    32.25
    Shipping Width
    29.125
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    69"
    Diameter
    26.5"
    Shipping Weight
    307 lbs
