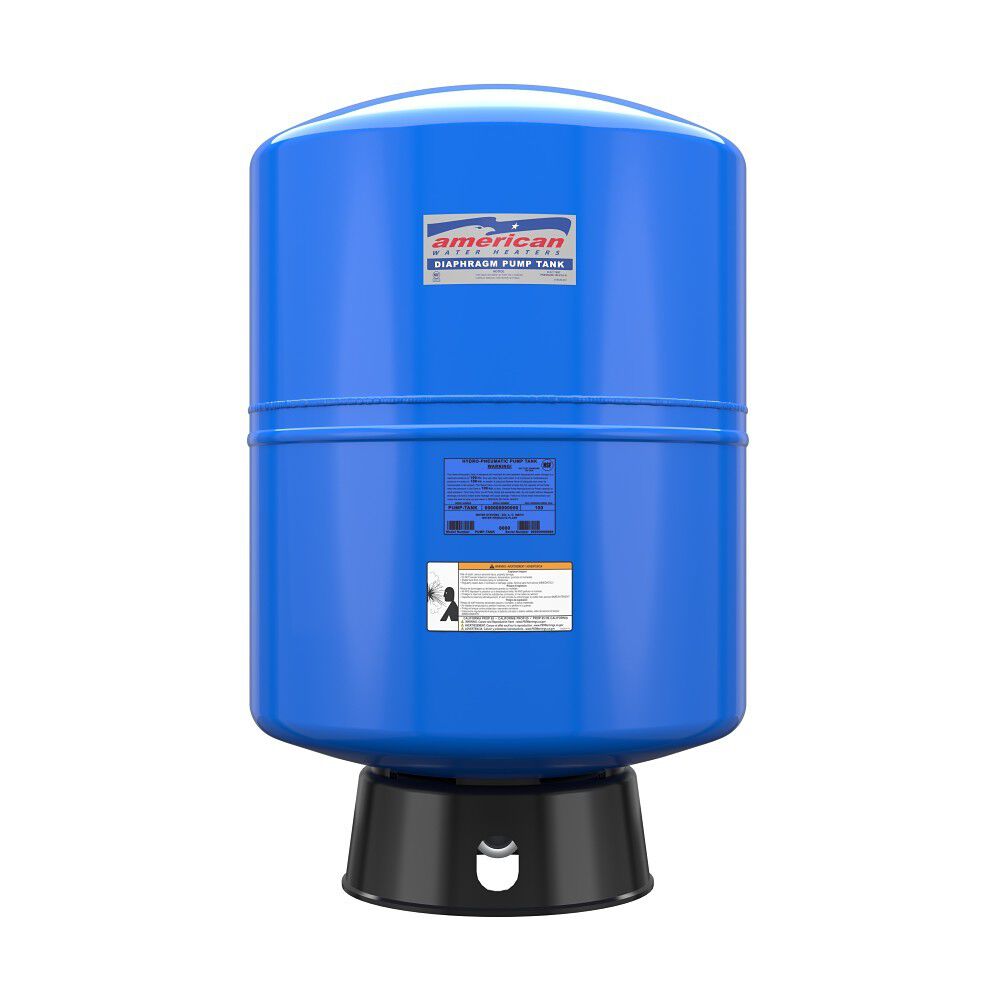

45-Gallon Free-Standing Diaphragm Pump Tank

Model APT-45 200
Capacity (Gallons)

  • Pre-pressurized diaphragm operation
  • Maximum working pressure 100 psi.
  • Multi-dome construction from lightweight, drawn steel.

    • 45-Gallon Free-Standing Diaphragm Pump Tank
    Model APT-45 200
    Find a Local Pro
    Find a Local Pro
    Product Details
    • Pre-pressurized diaphragm operation
    • Maximum working pressure 100 psi.
    • Multi-dome construction from lightweight, drawn steel.
    • Heavy Duty Parabolic diaphragm
    • Corrosion resistant polymer base
    • Fused polypropylene lined interior water chamber
    • NSF 612G/372 galvanized lead-free connection
    • Projection welded air valve.
    • 5-year limited warranty

      • American Pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    45 Gallons
    Rated Storage Volume
    45.2 Gallons
    Power Source
    DIAPHRAGM
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    0 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    1.25"
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    BOTH
    Application
    RESIDENTIAL
    Shipping Height
    36
    Shipping Length
    23
    Shipping Width
    23
    Side Loop
    No
    Dimension & Venting
    Type
    Pump Tank
    Height
    36"
    Width
    23"
    Shipping Weight
    64 lbs
