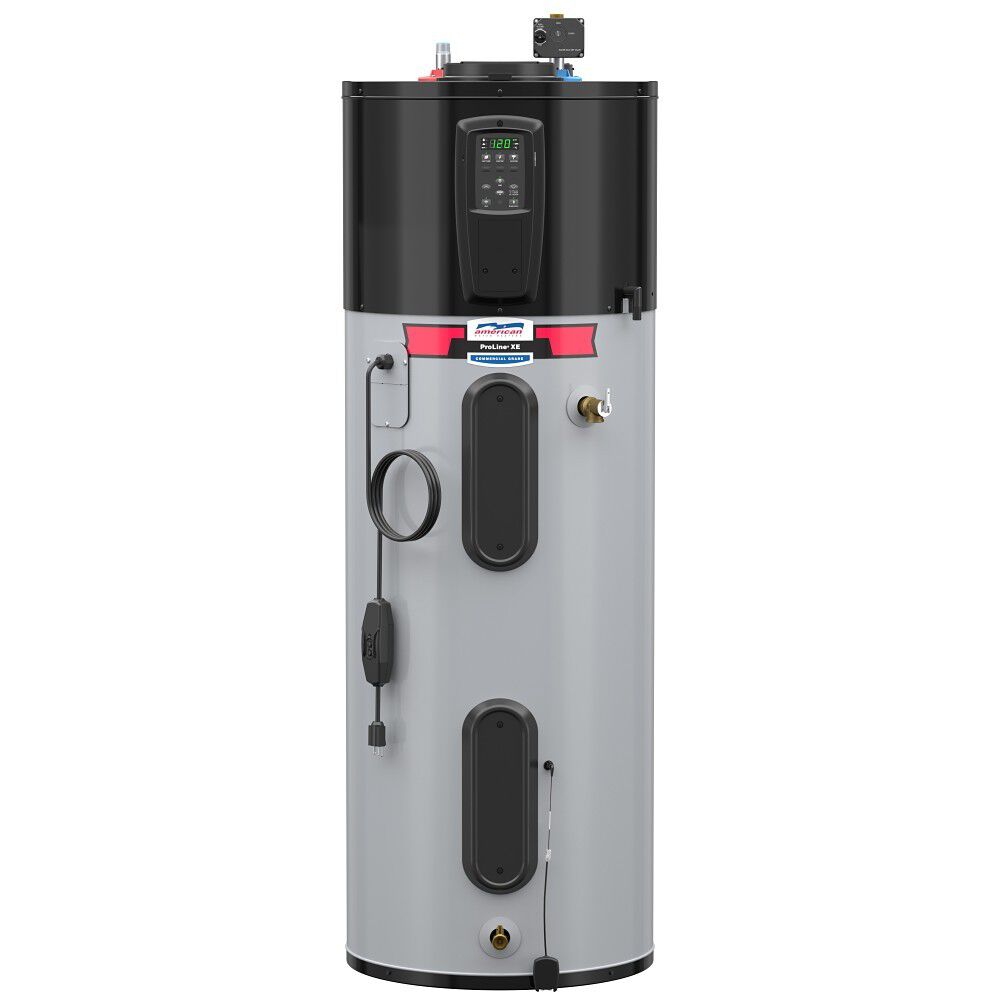

ProLine® XE 120V Plug-In Hybrid Electric Heat Pump 50-Gallon Water Heater - 10 Year Warranty

Model HPV10250H009DV 210
Capacity (Gallons)

  • ENERGY STAR® certified with a UEF of 3.0
  • Plug-and-Play Convenience—Simply plug into a standard 120V wall outlet
  • Leak Protection—Smart sensor alerts the user in the event of a leak
  • ProLine® XE 120V Plug-In Hybrid Electric Heat Pump 50-Gallon Water Heater - 10 Year Warranty
    Model HPV10250H009DV 210
    Product Details
    • ENERGY STAR® certified with a UEF of 3.0
    • Plug-and-Play Convenience—Simply plug into a standard 120V wall outlet
    • Leak Protection—Smart sensor alerts the user in the event of a leak

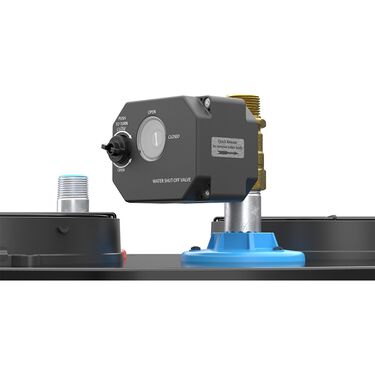

    • Shutoff valve automatically closes when a leak is detected to block the cold water supply

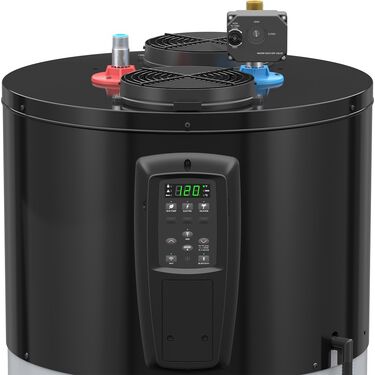

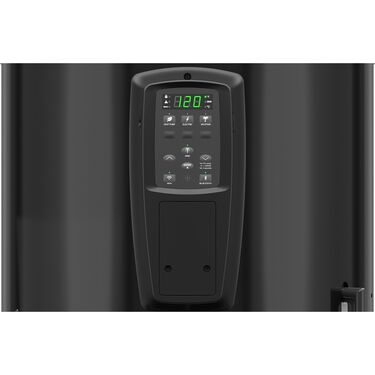

    • Easy to control using digital display
    • iCOMM™ Smart Connectivity allows you to monitor and control your water heater through Wi-Fi and Bluetooth
    • Whisper-quiet operation at 45 dBA
    • Contractor preferred top water connections for easy replacement of a gas water heater
    • Uses lower global warming potential R-513A refrigerant
    • 10-Year limited tank & parts warranty

    • The ProLine® XE Hybrid Electric Heat Pump Water Heater from American Water Heaters is an innovative solution for energy-efficient water heating. Designed for easy installation, these models plug into a standard 120V wall outlet, eliminating the need for specialized wiring. Heat pump technology absorbs heat from the surrounding air to heat water, reducing energy costs by up to 35% and saving homeowners up to $118 annually* compared to gas water heaters.

      These models are equipped with smart features, including leak detection and automatic water shutoff, ensuring peace of mind and enhanced protection. The integrated iCOMM™ smart connectivity allows users to monitor and control their water heater via Wi-Fi or Bluetooth, optimizing performance and energy savings. Available in 50, 66, and 80-gallon capacities, these models are perfect for replacing standard electric or gas water heaters or for use in new construction. They qualify for many federal, state, and local utility rebates, making them an affordable and sustainable choice for modern homes.

      *Savings based on comparing a 66-gallon 120V heat pump against pre-2015 similarly-sized standard gas water heater.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    46 Gallons
    UEF
    3
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years

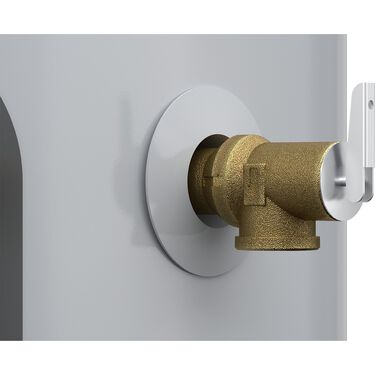

    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    3/4-in"
    First Hour Rating
    52 Gallons
    ASME Certified
    No
    NEEA Certified
    Yes
    Amperes
    9.38
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Height to T&P
    39.75
    Installation Type
    INDOOR
    Max Wattage
    900
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    67.75
    Shipping Length
    27.13
    Shipping Width
    23.5
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    66"
    Diameter
    22"
    Width
    22"
    Shipping Weight
    196 lbs
