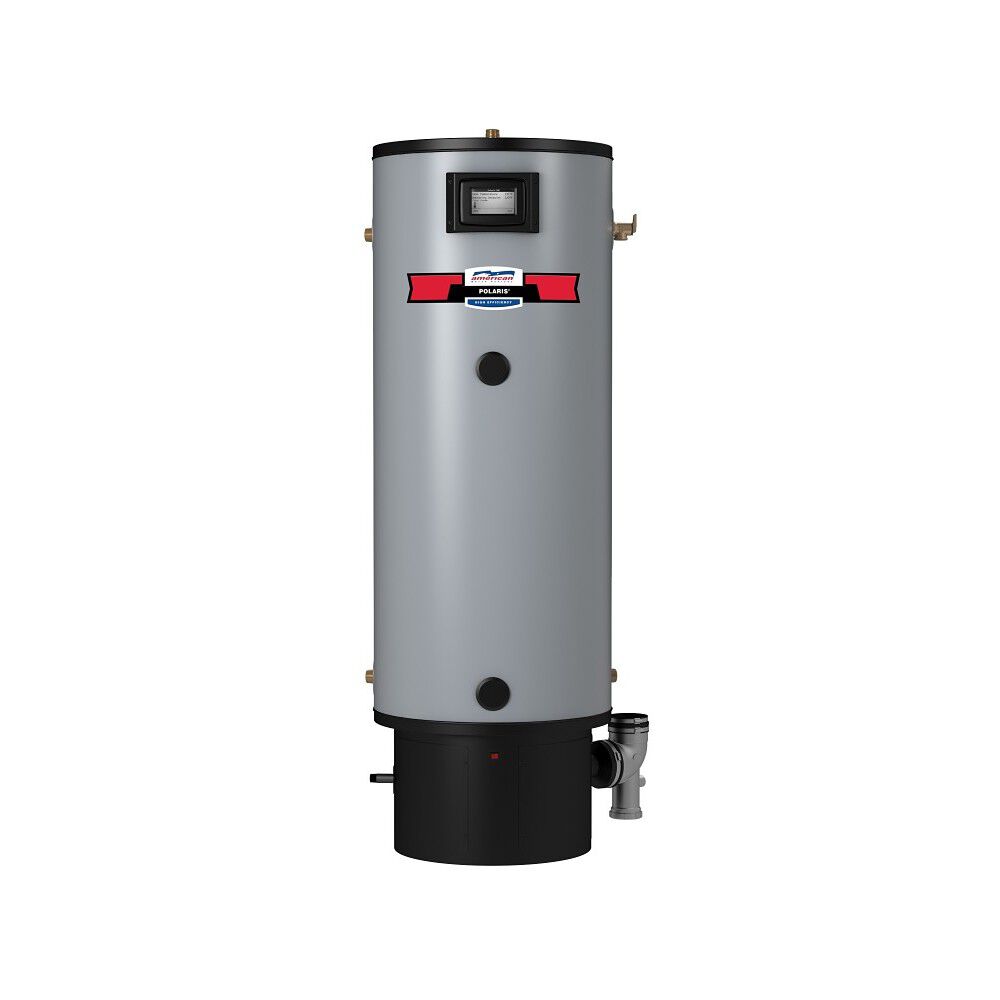

PG10-50-150-2PV - 50-Gallon 150,000 BTU Polaris High-Efficiency Liquid Propane Water Heater - 10 Year Warranty

Model PG10-50-150-2PV 201
Capacity (Gallons)
Height Classification
Advanced Options
Fuel Source
Maximum BTU's

  • Advanced Electronic Control—Large touchscreen display for precise temperature control & diagnostics
  • Condensing Design—Up to 96% thermal efficiency to lower operating costs
  • Ultra-Low NOx Modulating Gas Burner—Complies with strict NOx emission standards, ensuring eco-friendly operation
  • PG10-50-150-2PV - 50-Gallon 150,000 BTU Polaris High-Efficiency Liquid Propane Water Heater - 10 Year Warranty
    Model PG10-50-150-2PV 201
    Product Details
    • Advanced Electronic Control—Large touchscreen display for precise temperature control & diagnostics
    • Condensing Design—Up to 96% thermal efficiency to lower operating costs
    • Ultra-Low NOx Modulating Gas Burner—Complies with strict NOx emission standards, ensuring eco-friendly operation
    • Whisper-Quiet Operation—Ultra-quiet blower and burner minimize noise for a comfortable environment
    • Power Direct Vent Design—Flexible venting options using PVC, CPVC, or polypropylene through sidewalls or roofs
    • Easy Serviceability—Two front access panels expose modular components for straightforward maintenance
    • Side-Mounted Hot and Cold Recirculating Taps—Supports recirculation systems or combined domestic and space heating systems
    • High Recovery Rates—Models offer recovery rates up to 253 gallons per hour at a 90°F rise, ensuring consistent hot water supply
    • Compact Design—Space-efficient dimensions with flexible installation options
    • 10-Year limited tank and parts warranty

    • Polaris™ High Efficiency water heaters deliver exceptional performance and energy savings through their advanced condensing design. The helical internal heat exchanger ensures hot combustion gases remain in the tank longer, putting more heat into the water. Constructed with durable 444 stainless steel, the tank and heat exchanger resist corrosion without requiring an anode, ensuring long-lasting reliability. The ultra-quiet blower and burner provide whisper-quiet operation.

      Polaris™ water heaters feature advanced electronic controls with a large touchscreen display for precise temperature management and diagnostics. The power direct vent design provides flexible installation options using PVC, CPVC, or polypropylene venting. Two front access panels allow for easy maintenance. Compliant with ultra-low NOx emission standards, the modulating gas burner maintains high efficiency at lower input rates. Side-mounted hot and cold recirculating taps enable integration with recirculation systems or combined domestic and space heating systems, making Polaris™ water heaters a versatile and eco-friendly choice.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    47.8 Gallons
    Thermal Efficiency
    95%
    Maximum BTUs
    150,000
    Power Source
    GAS
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    SIDE
    Water Connection Size
    1"
    ASME Certified
    No
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Fuel Source
    PROPANE
    Height to T&P
    56.25
    Installation Type
    INDOOR
    Max Flow Rate
    4.2 GPM
    Minimum BTUs
    80,000
    Application
    RESIDENTIAL
    Shipping Height
    69.25
    Shipping Length
    26
    Shipping Width
    26
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    63.75"
    Diameter
    22"
    Shipping Weight
    188 lbs
    Vent Type
    Power Direct Vent
    Height to Gas Valve
    6.375"
