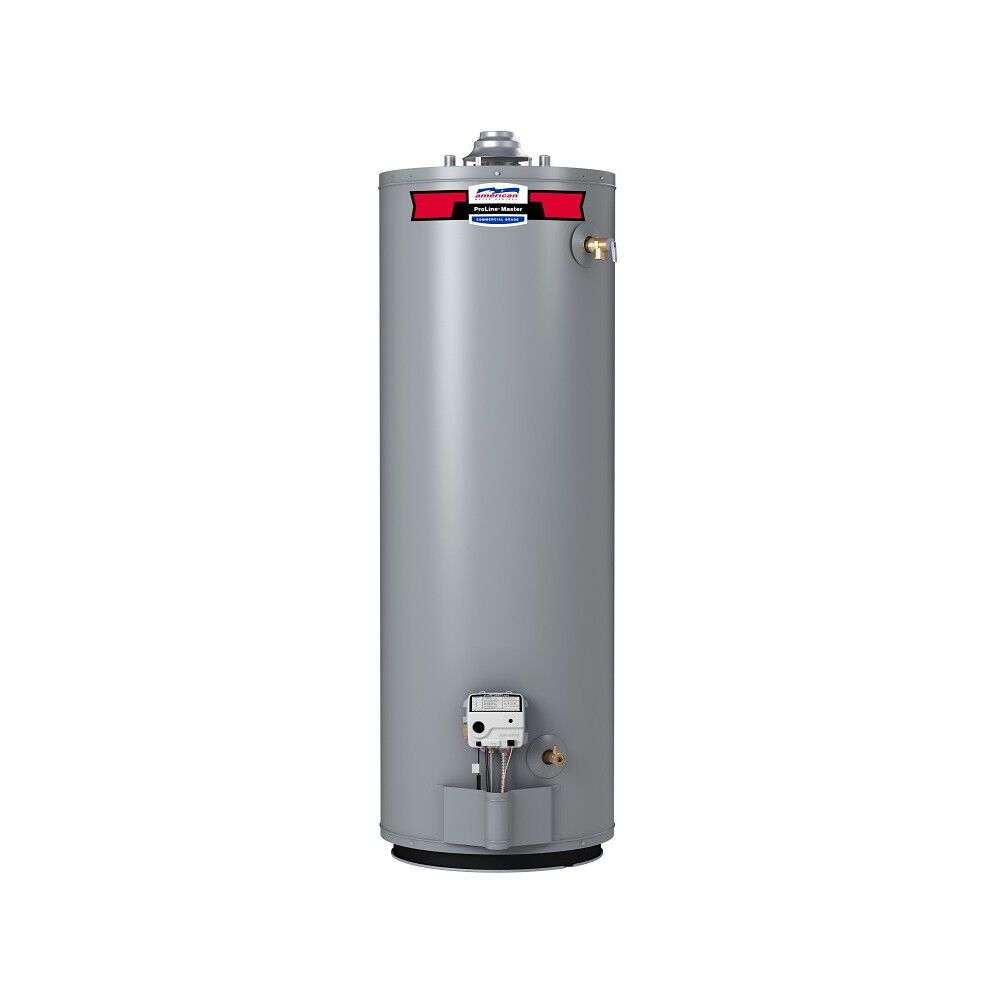

G82-50T50 - ProLine® Master 50-Gallon Gas Water Heater - 8 Year Warranty

Model G82-50T50 400
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Fuel Source
Advanced Options
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • Intelligent control logic—Ensures precise sensing & faster response for optimized performance
  • LED status indicator—Monitors system operation and provides service diagnostics
  • High Uniform Energy Factors (UEF)—Reduces operating costs with eco-friendly insulation and heat traps

    •
    G82-50T50 - ProLine® Master 50-Gallon Gas Water Heater - 8 Year Warranty
    Model G82-50T50 400
    Find a Local Pro
    Find a Local Pro
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    36.7 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    4.6 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    3 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    82 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $291/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • Intelligent control logic—Ensures precise sensing & faster response for optimized performance
    • LED status indicator—Monitors system operation and provides service diagnostics
    • High Uniform Energy Factors (UEF)—Reduces operating costs with eco-friendly insulation and heat traps
    • Thermopile-powered electronic gas control—Operates without requiring an external power source
    • Green Choice® gas burner—Reduces NOx emissions by up to 33% and complies with Low-NOx requirements
    • Self-cleaning dip tube—Minimizes lime and sediment buildup for maximum hot water output
    • CoreGard™ anode rod—Extends tank protection with a durable stainless steel core
    • Push-button piezo ignitor—Simplifies pilot lighting with one-hand spark ignition
    • Enhanced-flow brass drain valve—Enables quick and easy draining during maintenance
    • 8-year limited tank and parts warranty

      • ProLine® Master Atmospheric Vent water heaters are designed to deliver superior performance and durability for residential use. Equipped with intelligent control logic, these water heaters feature an internal microprocessor that enhances operating parameters and ensures faster heating response. The electronic gas control system operates without an external power source, utilizing a thermopile to generate the necessary power. Additionally, the LED status indicator provides real-time monitoring of system operations and service diagnostics, ensuring optimal functionality. The eco-friendly Green Choice® gas burner reduces NOx emissions by up to 33%, meeting Low-NOx emission requirements and promoting environmental sustainability.

      These water heaters incorporate advanced features to maximize efficiency and longevity. The self-cleaning dip tube minimizes lime and sediment buildup, ensuring consistent hot water output, while the CoreGard™ anode rod with a stainless steel core offers superior tank protection. The Blue Diamond® glass coating provides exceptional corrosion resistance, extending the lifespan of the tank. Factory-installed heat trap nipples simplify installation, and the enhanced-flow brass drain valve allows for quick and easy maintenance. With compliance to national codes and energy conservation standards, ProLine® Master Atmospheric Vent water heaters deliver reliable performance while adhering to stringent safety and efficiency requirements.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    48 Gallons
    UEF
    0.61
    Maximum BTUs
    50,000
    Power Source
    GAS
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    89 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to T&P
    50.50
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    60.81
    Shipping Length
    26.13
    Shipping Width
    23.13
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    60.75"
    Diameter
    22"
    Shipping Weight
    165 lbs
    Vent Type
    Atmospheric Vent
    Height to Gas Valve
    12.25"
    Maintenance & Troubleshooting
    Maintenance

    Residential Series Atmospheric Vent Lighting the Pilot

    Troubleshooting

    Residential Series Atmospheric Vent Draft Test

    Residential Series Atmospheric Vent No Hot Water

    Residential Series Atmospheric Vent Status Code 1 Flash

    Residential Series Atmospheric Vent Status Code 2 Flash

    Residential Series Atmospheric Vent Status Code 4 Flash

    Residential Series Atmospheric Vent Status Code 5 Flash

    Residential Series Atmospheric Vent Status Code 7 Flash

    Residential Series Atmospheric Vent Status Code 8 Flash

    Residential Series Atmospheric Vent Status Code Light Continuous
