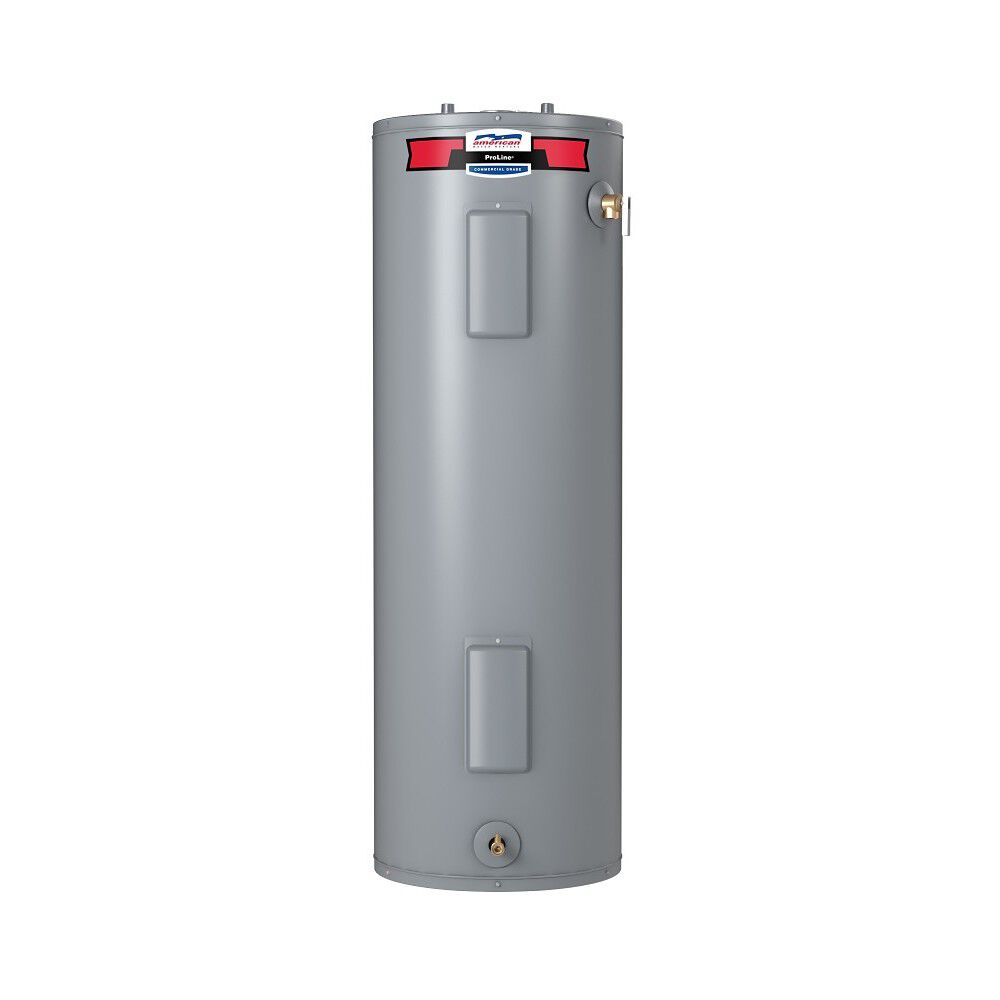

E10N-55H - ProLine® 55-Gallon Tall Standard Electric Water Heater - 10 Year Warranty

Model E10N-55H 100
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Blanket
First Hour Rating

  • Dual 4500-Watt Heating Elements—Ensure faster recovery times and reliable hot water availability
  • Incoloy Stainless Steel Lower Element—Offers superior durability & outlasts standard copper elements
  • Energy-Efficient Design—Features heat traps and advanced insulation to achieve higher Uniform Energy Factor (UEF) ratings
  • E10N-55H - ProLine® 55-Gallon Tall Standard Electric Water Heater - 10 Year Warranty
    Model E10N-55H 100
    Product Details
    • Dual 4500-Watt Heating Elements—Ensure faster recovery times and reliable hot water availability
    • Incoloy Stainless Steel Lower Element—Offers superior durability & outlasts standard copper elements
    • Energy-Efficient Design—Features heat traps and advanced insulation to achieve higher Uniform Energy Factor (UEF) ratings
    • Eco-Friendly Non-CFC Foam Insulation—Maximizes energy efficiency and reduces operating costs
    • Self-Cleaning Dip Tube—Actively minimizes lime and sediment buildup for optimal hot water output
    • CoreGard™ Anode Rod—Provides extended tank protection with a durable stainless steel core
    • Blue Diamond® Glass Coating—Delivers superior corrosion resistance for long-lasting performance
    • Enhanced-Flow Brass Drain Valve—Allows for quick and easy draining during maintenance
    • Certified to UL 174 Standards—Ensures safety and compliance with household electric water heater regulations
    • 10-year limited tank and parts warranty

    • ProLine® Standard Electric water heaters provide reliable and efficient hot water solutions for modern homes. With dual 4500-watt heating elements, these units ensure faster recovery times, delivering hot water when you need it most. The advanced Incoloy stainless steel lower element lasts longer than standard copper elements, offering durability and consistent performance. Eco-friendly non-CFC foam insulation and heat traps enhance energy efficiency, helping homeowners save on operating costs. The self-cleaning dip tube actively reduces lime and sediment buildup, maximizing hot water output and extending the life of the water heater.

      ProLine® water heaters are designed to protect and perform. The CoreGard™ anode rod, featuring a stainless steel core, extends the life of the tank by providing superior protection against corrosion. The Blue Diamond® glass coating further enhances durability, ensuring long-lasting performance. Maintenance is simple with the enhanced-flow brass drain valve, which allows for quick and easy draining. Certified to UL 174 standards and compliant with federal energy conservation regulations, ProLine® water heaters deliver peace of mind and reliability. Backed by a 10-year limited warranty, these water heaters combine advanced features with dependable performance to meet the needs of any household.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    55 Gallons
    Rated Storage Volume
    55 Gallons
    UEF
    0.93
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    72 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    48.50
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    60.63
    Shipping Length
    28.25
    Shipping Width
    25.13
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    56.5"
    Diameter
    24"
    Width
    24"
    Shipping Weight
    180 lbs
