Residential Electric Direct Solar Water Heaters

6-Year Limited Tank/6-Year Limited Parts Warranty*

Residential Electric
Direct Solar Water Heaters by American Water Heaters

Download Spec Sheet

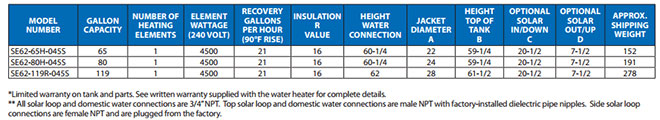

American direct solar water heaters are designed for installation as a part of a direct (open loop) solar water heating system or for use with external heat exchangers in closed loop systems. Available in 65, 80 and 119-gallon capacities these models provide storage for the hot water produced by the solar collectors and a supplementary electric heating element that maintains consistent water temperature during periods when solar energy is not available.

Multiple Connection Options for Installation Flexibility
  • Side and top connections for open loop systems or closed loop systems using an external heat exchanger

Electrical
  • 4500 watt heating element - long lasting low-watt density design spreads wattage over larger surface area to prolong element life and maximize efficiency
  • Pre-wired for surface mount temperature sensor (sensor supplied separately)

Tank Construction
  • Glasslined Steel Tank – glasslining protects against corrosion to maximize tank life
  • 2-inch thick “Environmentally-Friendly” Non-CFC Foam insulation (R16 Value) reduces standby heat loss

Anode Rod
  • Anode rod with stainless steel core protects tank against corrosion

CSA Certified and ASME Rated T&P Relief Valve

Durable Tamper-Resistant Brass Drain Valve

Compliance
  • Units are UL and cUL listed to UL 174 Standard for Household Electric Storage Tank Water Heaters and CAN/CSA-C22.2 No. 110-M90; Complies with California legislation AB 1953 and Vermont legislation Act 193 that limits the lead content in plumbing fixtures that come into contact with drinking water to a maximum of 0.25%.

Standard 6-Year Limited Tank and Parts Warranty
  • Optional 10-year extension on tank warranty when used in a residential application
  • 3-year tank and 1-year parts warranty when installed in a commercial application
  • For complete warranty information consult written warranty supplied with the product, go here,
  • or call American Water Heaters at 800.456.9805
